Entity-relationship(E-R) modelling of data elements of an application.

By -

Entity-relationship(E-R) modelling of data elements of an application.

LOGICAL DATABASE DESIGN-INTRODUCTION

Loosely one may call organization of related data, put in a table as a “RELATION“. Systematization by which related data are put in a table is called “NORMALIZATION”. A method called entity-relationship analysis facilitates creation of relations.

ENTITY-RELATIONSHIP MODEL

ENTITY: Specifies distinct real world items in an application For example: vendor, item, student, course, teachers RELATIONSHIP: Meaningful dependencies between entities For example: vendor supplies items teacher teaches courses Relationships are underlined above

ENTITY SETS

An entity set is collection of similar entities

Examples :

* Set of all vendors of an organization is a vendor set

* Set of all items in a store is an item set

Every member of an entity set is described by its attributes

ATTRIBUTES

Attributes specify properties of members of entity set & also specify properties of relationships

Examples:

Entity : Vendor

Attributes : vendor code, vendor name, address Relationship : supplies

Attributes : vendor code, item code,order no., qty. supplied,date of supply,price/unit

ENTITES AND ATTRIBUTES

Example

Entity : Teacher

Attributes : Teacher code,teacher name,department,building,room no,phone no.

Relationship : Teaches

Attributes : Teacher code,Course no,course name,semester offered, credits, prerequisites

ENTITY-RELATIONSHIP DIAGRAM

Some entities depend on one another, for example, entity vendor and entity items are related as vendors supply items. These relationships are described by entity-relationship diagrams (or ER diagrams). In an ER diagram entities are represented by rectangles and relationships by diamond shaped boxes

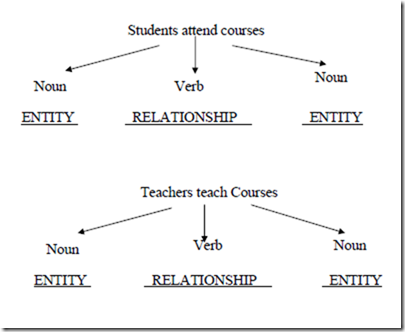

HOW TO IDENTIFY ENTITIES AND RELATIONSHIPS

When a word statement is used to describe applications, nouns normally are entities and verbs relationships.


ENTITY-RELATIONSHIP DIAGRAMS

One entity may be related to many other entities by multiple relationships


Observe a vendor can supply many items, and also that many vendors can supply the same item

RELATION CARDINALITY REPRESENTATION


WHY IS FINDING CARDINALITY NECESSARY

1. The identifier of the relationship will be composite if cardinality is N:M

2. It will be single if cardinality is 1:M

3. Will be useful later in designing data base
