Computer- integrated manufacturing: The benefits of factory automation

By -

The benefits of factory automation

Organizations which have implemented CIM techniques have benefitted in a number of ways. A recent survey com­ missioned by the DTI and carried out by Benchmark Re­ search revealed the following perceived benefits from CIM:

• Increased flexibility in manufacturing operations.

• Increased productivity.

• Reduction in lead times.

• Reduction in costs.

• Improved product quality.

clip_image002

Creating the integrated factory

To implement CIM, the DP system and the various auto­ mated manufacturing systems (see page 219) must be closely tied together by electronic links. There must be a large computer (typically a mainframe) in overall control of these systems, running special software such as the TIME software described in the next section. This same computer may also run the DP system and the various CIM systems, in which case the links between these systems will be purely software links.

The first phase may be to link the CAD system to the CAM system, to create a CAD/CAM system. In this, the product design created on the CAD software is converted by the CAM software to instructions for the factory machines, so that the settings for the machines and the tools used are automatically determined.

In the second phase, the DP system may be tied to the CAD/CAM system to create what's sometimes called an integrated factory. In this, the information from customers' orders is used to control the scheduling and loading of work in the factory, so that it automatically produces what's required. As well as this, the DP system is linked to the CAD system, so that it passes to management reports and market information for use in product design.

These key systems that make up the integrated factory are shown in Figure 10.1. Note that the links that are shown in the diagram between these systems take place via the controlling software, as explained in the next section.

At present, CAD/CAM is quite widely employed, but few integrated factories exist, apart from some in Japan.

The remaining sections of this chapter describe a range of CIM technologies and techniques, beginning with a brief description of software that can be used to control the integrated factory.

Controlling the integrated factory

One example of software for controlling the integrated factory is TIME, short for Tandem Integrated Manufactur­ing Environment. As its name implies, this system is a product of Tandem Computers, and runs on their mainframes.

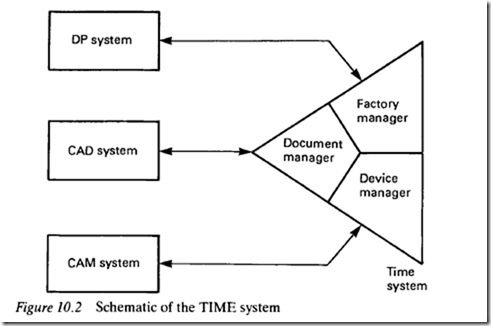

A schematic of the TIME system is shown in Figure 10.2.

It consists of three modules, called Factory Manager, Docu­ment Manager, and Device Manager. These modules per­ form the following broad tasks:


• The Factory Manager controls the minute-by-minute progress of parts through the factory, to ensure that orders are produced at the right time and to the right specifications. The basis of this control is information on customer orders obtained from the DP system.

• The Document Manager takes the designs produced by the CAD system and passes them around the factory to the machines that require them, when they require them.

• The Device Manager is really the interface between these two managers and the factory machines. It inter­ prets the information produced by the Factory Manager and the Document Manager into the instructions that are passed to the CNC machines, robots, and other factory devices.

The following sections describe four of the main CIM techniques, namely MRP, CAD, CAM, and FMS.
